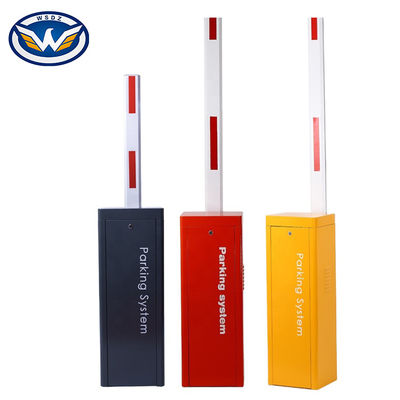

Name: Low Cost Heavy Duty Economical Barrier Gate Remote Control AC Motor Barrier
Brand: Low Cost Heavy Duty Economical Barrier Gate Remote Control AC Motor Barrier
SKU: DZ-130
Price: 1 USD
Availability: InStock
Rating: 4.6 (105 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number:: DZ-130

Speed:: 1.8s, 3s, 6s

Certificate:: CE

OEM/ODM:: Supported

Boom Length:: Max 6 meters

Arm type:: straight, folding, fencing

Color:: White, Grey, Customized

Material:: 1.5mm Cold Roll Plate Or Galvanized Plate

Features:: Heavy duty, swing out, remote control

Name:: Low Cost Economical Barrier Gate Remote Control AC Motor Barrier

Informazioni di base

Certificazione: CE

Model Number: DZ-130

Termini di pagamento e spedizione

Packaging Details: Low Cost Economical Barrier Gate Remote Control AC Motor Barrier Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Supply Ability: 2400 Set/Sets per Month Low Cost Economical Barrier Gate Remote Control AC Motor Barrier

Descrizione di prodotto

Company Information

Low Cost Economical Barrier Gate Remote Control AC Motor Barrier

Technical Data:

Name	Barrier gate, Parking barrier,Boom barrier
Model	DZ-130
Size	350270935mm
Rating Voltage	AC 220/110V ±10%, 50/60Hz
Motor Power	80w
Speed Option	1.8s; 3s; 6s
Material	1.5mm galvanized plate or cold roll plate with epoxy paint
Weight	55 KG
Operation Testing	More than 5 million times
Arm Option	Straight arm, 1-6 m for option, 4580mm or 45100mm Folding arm, 1-4.5 m for option, 90 degree or 180 degree Fence arm, 1-5m for option, two fence or three fence
Working Temperature	-45°C — +75°C
Remote Control Distance	Less than 30m
Package	Packing size: 1040352470mm, standard export carton case Inside with PE foam for collision protection
Application	Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center

Functions&Features:

1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)
