Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Name: parking barrier

size: 344*290*1090mm

Rail type: straight/ folding /Telescopic

length of the arm: â‰¥6m

speed: 3-6s

Box material: SPCC Steel

Motor speed: 30-40r/min

warranty: 1 Year

Package: Wooden Carton

Material: Aluminum Alloy

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Wooden box in outside for protecting in shipping

Supply Ability: 600 Piece/Pieces per Month

Descrizione di prodotto

Product Description

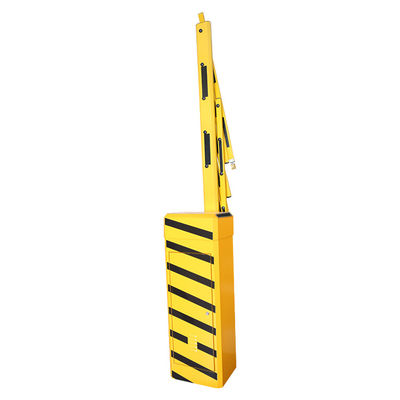

Security Remote control road traffic equipment electric Parking Barrier Gate for entrance

Specification

item	value
Name	parking barrier
size	3402801045mm
Housing color	yellow/orange/black&yellow
Rail type	straight/ folding /Telescopic
length of the arm	≥6m
speed	3-6s
Box material	SPCC Steel
Motor speed	30-40r/min
warranty	1 Year
Package	Wooden frame
Rail material	Aluminum Alloy
Wave pressure	yes
Traffic light	optional
Working environments	indoor/outdoor
Relative humidity	<90% coagulation free

When choose parking lot barrier,pls tell me these requirements described blow：

1. Arm type：a) Straight arm- suitable for broad area without height limitation
b).Folding arm- suitable for the place with height limitation such as underground parking lot
c).Fence arm- suitable for the place with the ban of animals.

2. Straight arm length:Available between 3-6m(Standard length is 3 M)

3. Movement speed(Lifting speed): generally between 3-6s

4. Opening type:Manual open /remote control open

5.Optional Function: a) Anti-collision
b) Traffic light prompt
c) Voice prompts

1. Closing Priority
While arm moving up, the arm will immediately go down once a close command is given
2. Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no
vehicle passed after barrier open.
3. Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
4. Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
5. Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
6. Boom to open up fully or close down in case of power failure
If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.
7. Anti-condensation in cold climate
The barrier remains low power consumption even without closing and opening input, which will keep the motor in normal temperature.The lubricant will not be frozen so that the barrier will keep working in frozen environment
8. Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.

Features

Parking barrier functions

1) Bidirectional self-locking function.
2) Time protection function.
3) "Gate open" command has high priority.
4) "Close" command memory function available.
5) Remote control interface, Remote control emitter can be equipped.
6) Three operation modes: Remote control,push button,manually operation.
7) Loop detector can be equipped.
8) Infrared detecting interface, infrared detecting device can be equipped.
9) Wave pressure device is controlled by wave pressure switch, so as to protect car or person from smashing.
10) Simply structure, runs stable and reliable

Our project

It can be used in parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment
block access.

Recommend Products

Packing & Delivery

1.Wooden frame packaging:1 pc machine in 1 pc wooden frame：120*46*46 cm weight:50kg

1 pc arm in 1 pc wooden frame

2.You can choose to ship by sea, air or express
