Casa /Prodotti/Portone del cancello girevole dell'oscillazione/RFID Reading/FR reader/finger reader and more Speed Gate Turnstile Price Swing Gate Turnstile High Speed Turnstile Gate

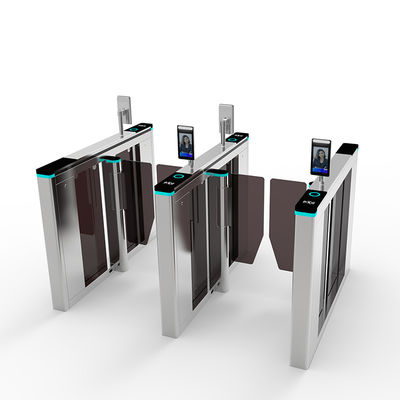

RFID Reading/FR reader/finger reader and more Speed Gate Turnstile Price Swing Gate Turnstile High Speed Turnstile Gate

1 piece
MOQ
RFID Reading/FR reader/finger reader and more Speed Gate Turnstile Price Swing Gate Turnstile High Speed Turnstile Gate
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: STDZ35, STDZ35
Certificate: CE CCC RoHS FCC
Name: High speed turnstile gate
Material: 304 drawing stainless steel
delivery: Shipping/air freight,etc
Motor: DC brushless motor
Language: english/chinese
Size: 1400mm*160mm*1050mm
Warranty: 1 Year
Function: RFID Reading/FR reader/finger reader and more
Informazioni di base
Certificazione: CE CCC RoHS FCC
Model Number: STDZ35, STDZ35
Termini di pagamento e spedizione
Packaging Details: wooden cartoon or cartoon optional
Supply Ability: 100 Pair/Pairs per Week
Descrizione di prodotto
Products Description
STDZ35
STDZ35 adopts our patented appearance case, which is easy to use and convenient for overall maintenance. The door body is adsorbed by electromagnet. When the door closing resistance is greater than the set value, the door body can open automatically. When the power is off, the door body will open automatically without battery. Intelligent gate is a kind of non-contact channel detection and control intelligent channel management equipment, which adopts the latest mechatronics control and drive technology of the company. Multiple groups of sensors can control the entrance and exit through the glass wing. Authorized legal personnel can pass through without any obstruction without single inspection, refuse unauthorized access, and provide high-quality entrance and exit control.
This type of gate is suitable for public occasions with large flow of people. Its service life and safety are the primary
considerations of the product. The whole system uses stepless positioning device, the operation process is controlled by sensors,
no mechanical collision, so as to achieve stable operation, low noise and less wear. According to a large number of project actual
use data summary, the actual service life of the equipment is more than 5 million times. Magnet adsorption, belt drive, servo
mobile positioning driver and other high price components are designed to avoid injuring pedestrians
Technical specifications
Voltage
100V to 240V AC (large range of power input voltage)
Frequency
single phase 50Hz to 60Hz
Working voltage
DC24V
Current
static 300mA; dynamic 4a (maximum working current)
Communication
Standard RS232 serial port
Dimension
1400mm*120mm*1050mm
Opening and closing speed
0.4 ~ 0.8s (user can set)
Power driven
DC brushless motor
Safety touch
automatic opening after power failure
Door body stroke
350mm (single door body)
Door body
plexiglass plate, etc.
Core life
5 million times
Operating temperature
- 20 to 70 ° C (- 4 to 158 ° f)
Storage temperature
- 40 to 80 ° C (- 40 to 176 ° f)
Relative humidity
5 ~95% in non solidification state
FACTORY TOUR
Factory products
keyway Planer
Face Recognition Aging Test Area

SUS304 Laser Cutting Machine

Turnstile Gate Assembly Workshop

Barrier Gate Assembly Workshop

Product packaging
Optional shipping terms:EXW,FOB,DDU,DDP etc
Company Profile
SHENZHEN SHANGMI INTELLIGENT CO.,LTD Opened in Shenzhen in 2012, Szsmi and SMI are well-known brands of our company.
More details reference to the website: www.szsmi-access.com &szshangmi.com

Our basic goal is to provide better channel solution services for the world.
We focus on the the design& production for Turnstile gate, Face recognition, Barrier Gate, body temperature products，safety-check Door etc.

So far, our factory has two production workshops, a total of 150 production workers, two 3000kW SUS304 laser cutting machines,
five bending machines, three welding production lines, one aging laboratory and two R & D teams (average age 29).

SZSMI Won the “2016 China Security Products well-known brand” Although it has designs many ”off-the-shelf” open standards,hardware and software solutions, we know that one size doesn’t fit all. Solutions require inter operability,that means, adapting, regardless of whether it components or those of our partners or competitors. SMI prides itself on being a single source for custom security hardware and software development in addition to integration.
Exhibition
CPSE
China International Social Public Security Expo is the only professional public security exhibition in China certified by BPA
international media certification agency.
Founded in Shenzhen Special Economic Zone in 1989, it has 30 years of growth and 17 security exhibitions, serving more than 9700
enterprises, and providing 651741 professional buyers with hundreds of billions of security business opportunities. The largest
security exhibition in the world, the most authoritative and influential Security Exhibition in Asia.
FAQ


1. How about the quality of your products? We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
2.How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
3.How long is your warranty period?
One-year guarantee & Life-time technology support.
4. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment.
5. How about your package? Seaworthy wooden case
FACTORY TOUR
Factory products
keyway Planer
SUS304 Laser Cutting Machine
Turnstile Gate Assembly Workshop
Face Recognition Aging Test Area
Barrier Gate Assembly Workshop
Company Profile
SHENZHEN SHANGMI INTELLIGENT CO.,LTD Opened in Shenzhen in 2012, Szsmi and SMI are well-known brands of our company.
(www.szsmi-access.com &szshangmi.com is our website). Our basic goal is to provide better channel solution services for the world.
We focus on the the design& production for Turnstile gate, Face recognition, Barrier Gate, body temperature products，safety-check
Door etc.

So far, our factory has two production workshops, a total of 150 production workers, two 3000kW SUS304 laser cutting machines,
five bending machines, three welding production lines, one aging laboratory and two R & D teams (average age 29).

SZSMI Won the “2016 China Security Products well-known brand” Although it has designs many ”off-the-shelf” open standards,
hardware and software solutions, we know that one size doesn’t fit all. Solutions require inter operability,that means, adapting,
regardless of whether it components or those of our partners or competitors. SMI prides itself on being a single source for custom
security hardware and software development in addition to integration.
Exhibition
CPSE
China International Social Public Security Expo is the only professional public security exhibition in China certified by BPA
international media certification agency.
Founded in Shenzhen Special Economic Zone in 1989, it has 30 years of growth and 17 security exhibitions, serving more than 9700
enterprises, and providing 651741 professional buyers with hundreds of billions of security business opportunities. The largest
security exhibition in the world, the most authoritative and influential Security Exhibition in Asia.
FAQ

FAQ

1. How about the quality of your products? We are in the highest level of quality with the most competitive price. We choose German, Japanese and domestic lead brand accessories to ensure product quality from the source. At factory, we implement 5S management to control production process.
2.How do you do after-sale service?
We provide life-time technology support on line, by emails, video, phone etc. We have engineer speaking English, convenient to communicate with you directly.
3.How long is your warranty period?
One-year guarantee & Life-time technology support.
4. How about the payment method? Standard products: 30% deposit, 70% balance payment before shipment.
5. How about your package? Seaworthy wooden case
