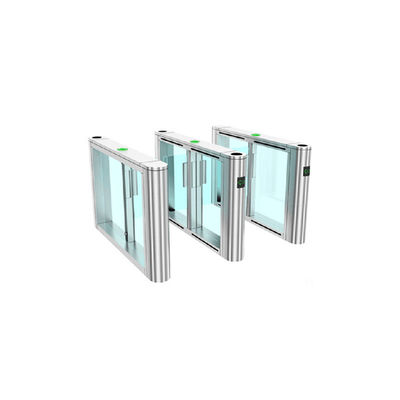

304 Stainless Steel Face Recognition Turnstile Swing Barrier Gate with Smart Card QR Code Reader

1.0 set
MOQ
304 Stainless Steel Face Recognition Turnstile Swing Barrier Gate with Smart Card QR Code Reader
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: G-Z505
Product name: Face Recognition Turnstile Swing Barrier Gate
Material: 304 Stainless Steel
Power supply: AC220V±10% 50HZ
Passing Direction: Uni-/Bi-Direction Pass Adjustable
Traffic Speed: 40~60 persons/min(NC)
Flap Opening/Closing Time: 0.5~60s adjustable
Type: Fully Automatic
Communication: RS485 or TCP/IP
Motor: DC Brushless Motor
Informazioni di base
Model Number: G-Z505
Termini di pagamento e spedizione
Packaging Details: Carton or wooden
Supply Ability: 5000 Piece/Pieces per Month
Descrizione di prodotto
Product Description

Face Recognition Turnstile Glass Swing Barrier Speed Gate With Smart Card QR Code Reader

G-Z505 is a stainless steel swing turnstile with innovate design, high quality and fast controlling for entry and exit. It can be controlled by RFID, barcode, fingerprint or facial verification device. The data transfers by TCP/IP or RS-485. It's good for management of people's entry and exit in school, office, gym, residential, supermarket etc.

SPECIFICATIONS
Material
SUS304,thickness 1.8mm
Finishing
Light wire drawing
Barrier Material
Acrylic glass
Input Voltage
AC220V±10% 50HZ
MCBF
5 Million/time
Traffic Speed
40~60 Persons/min
Flap Opening/Closing Time
0.5~60S Adjustable
Maximum Passage Width
600-1100mm
Control Signal
Relay switch signal/Dry contact signal
Swing Arm Drive Angle
180°
Communication interface
RS-485,TCP/IP
Drive Motor
DC brushless motor
Running Mode
Full-auto
Pass
Uni-/Bi-direction pass adjustable
IP Grade
IP65
Dimension
L1400*W180*H1000mm
5Net Weight
50KG(Single barrier),70KG(Double barrier)
Operating Humidity
≤90%
Operating Tem.
-30℃~+60℃
Working Environment
Indoor and outdoor(with a tent over)

Main Features

1) Flow direction guide with high bright led lamp.

2) High speed DSP technology, life up to 5 million times.
3) Malfunction self-detection, which is easy for operation and maintenance.
4) Anti-tail, prevent people follow pass without verified.
5) Anti-panic, door will keep opened automatically while power cut off.
6) One directional pass or bi-directional pass is settable.
7) With crash proof function, turnstile integrated angle coder and clutch, can protect the door while people or bicycle crash.
8) Can be integrated with all kinds of access control systems include ID/IC, barcode, fingerprint, face, iris, etc.

Detailed Images




Stainless Steel Material

The shell is made of 304 stainless steel high temperature and corrosion resistance, durable dustproof and rainproof design for outdoor use.





Traffic Lights Guidance

Traffic direction guide with high bright led lamp. Passers can simply find the correct channel and get the verification results.





Verify Modules

It can be compatible with card, QR code, barcode, fingerprint, face, etc. Customized according to customer needs.




Intelligent Control Board

The operation made of the brake machine can be set of by the main board self drive board for 24 hours continuous application.

Our Company

* Granity is one of the leading designer and manufacturer of the parking barrier gate, parking guidance system, access

  control system and turnstile with 10 years' experience in this industry;
* We have 5 holding subsidiaries, 15 branch offices;
* We provide good quality products with reasonable and competitive price;
* We have excellent skilled workers and technicians for producing good quality products;

Our Service

1. Prompt reply. Your inquiry related to our products or price will be replied within 24 hours.
2. Professional manufacturer and supplier. Welcome to visit our website and our factory.
3. OEM/ODM available. You are welcome to consult us for more information if you want a different color, appearance or function.
4. Reasonable & competitive price. We provide good quality products with reasonable and competitive price.
5. Technical support. In before sale and after sale.
6. Warranty Policy. We provide 2 years warranty, from the date of delivery, a lifetime technical support.
7. Fast delivery. Around 1~ 5 days for sample order, 7~30 days for bulk order.
8. Payment: You can pay for the order via T/T, Western Union, PayPal, Money Gram.
9. Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, forwarder by sea and by air, You also can choose your own shipping forwarder.
