Automatic Security Entrance Gates Swing Barrier Gates Supplier
Intelligent swing barrier is a brand-new product of our company. It has features of precise craftsmanship, comprehensive functions and high reliability, which can be applied in high class communities, intelligent buildings, hotels, subway stations, gym and other high level venues, our swing barrier can be integrated with modern intelligent management system to realize the intelligent management of access control. Swing barrier can be classified into cylindrical swing barrier and bridge- type swing barrier.
Model Item | Swing Barrier Mechanism |
Mechanism Dimension | 108*450mm |
Arm Length(Optional) | 500-900mm |
Motor Material | Steel and Aluminum Alloy |
Driving Motor | 24V Brush DC Motor |
Swing Direction | Single or Bidirectional Operation are Available |
Input Interface | Dry Contact and Switch Signal Connection |
Time for Opening or Closing | 1 second |
Starting time after power on | 3 seconds |
Transit Speed | 30~40 persons/min |
Working Environment | Indoor / Outdoor (Shelter) |
Working Temperature | —25°C~50°C |
Relative Humidity | ≤90%, no condensation |

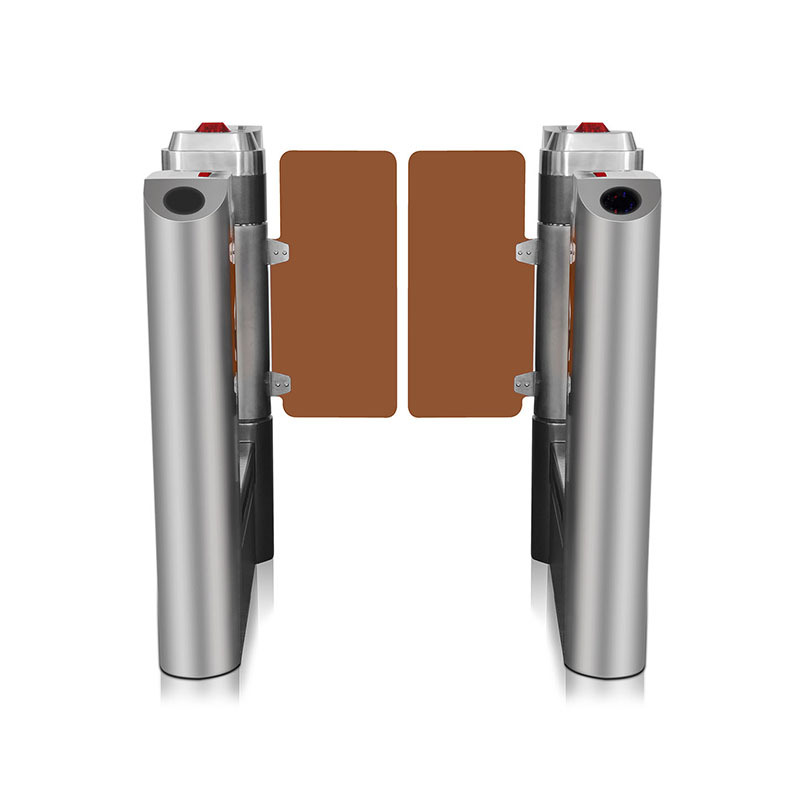

Swing Barrier
1) A compact electro-mechanical design with unique drive and a self-lock mechanism
2) Automatic detection for malfunctions
3) Input interface available for dry contact and switch signal connection
4) Adjustable auto-delay closing
5) Infrared photocells for safety access
6) Alarm for unauthorized access and no access againsl passenger How
7) Auto-closing when power on
8) Free access when power off
9) Adjustable access directions
10) Emergency interface available
11) Traffic lighl indicating passenger access
Detailed Images
Automatic detection for malfunctions, which will be convenient for customer to maintain and operate.
Auto delay closing function, after the flaps open if no pedestrian passes in a fixed time, the system will cancel the order and the auto-delay closing time is adjustable.
Audible and visual alarm in case of unauthorized access, which can strengthen the entrance security.
It can be integrated with fire control device, which allow the release on emergency for security consideration.
Both directions can be set as controlled mode or free mode.
WEJOIN utilizes advanced testing equipment and various testing methods in all production processes.
Shenzhen Weijoin Mechanical&Electrical Co. was founded in 2004. It is the first national high-tech enterprise speciallized in research and development, manufacturing and sales of intelligent access control products in China. As one of the Brand Business Enterprises of Guangdong province, WEJOIN so far is also one of the largest manufacturers in access control and management product. Its main products include automatic barrier gate, tripod turnstile, flap barrier, swing barrier, etc.
packaging
Size | 131*34*130CM |
Weight | 140 kg |
Packaging Details |
The normal package is wooden box(Size: 131*34*130CM). If export to european countries,the wooden box will be fumigated. If container is too tigher,we will use pe film for packing or pack it according to customers special request. |
Our Service
Pyment Term | Leading Time | Minimum Order | Supply Ability | Package |
T/T; West Union | 5-7 working days | 1 Unit | 10,000 Unit/ Month | Paper Carton or Wooden Box |
Q: What's WEJOIN monthly production capacity?
A: 10000 units.
Q: Sometimes, Why the barrier boom would open automatically?
A: Please check if the limit switch is on the right position; if not, please adjust the Limit Switch. Please refer to last page of Barrier Gate Manual. Or you can adjust the adjusting screw. And the last step is to check the intensity of the spring.
Q: What’s the remote control distance?
A: In general, most of WEJOIN 418 remote control can cover 100 meters, but it is not safe and stable to control the barrier gate from 100 meters away. WEJOIN recommends using the remote control within 30 meters or 50 meters.
