Caratteristiche

Specificazioni

Boom: Optional

motor: Variable Frequency Motor

Color: Gold,Silver,Black,Yellow,Jacinth

Insulation grade: F

Certificate: CE; ISO9001:2008

Cabinet: 2mm Zinc Plated Steel

Warranty: 2 Years

Usage: Road Traffic Safety

Feature: High Durable

Keyword: barrier gate

Informazioni di base

Certificazione: CE; ISO9001:2008

Termini di pagamento e spedizione

Packaging Details: Paper Carton or Wooden Box

Supply Ability: 10000 Unit/Units per Month

Descrizione di prodotto

Product Description

Product Application

Fastest running speed can be 0.4 second (model WJCB02E, 0.4~0.9s adjustable), 100% duty cycle and free-maintenance make the barrier be proper for toll station and parking system!

Functions&Features

1.DC permanent magnet synchronous motor(PMSM),servo control.

2.Superior performance,equivalent to the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, less heat and low noise.

3.Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.

4.Electronic clutch design: more convenient to unclck or lock the motor when power off.(patented technology)

5. Three tension spring crank transmission design, for more stable and reliable structure.(patented technology)

6.No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.

7.More sensitive and reacting faster when reversing on obstacles.

8.With counting, delay auto-closing, auto-aging test, alarm when lifting boom without permission, motorcade passing function.

9.LCD display controller, more humanized operation and setting.

10.NO/NC wire control signal input are optional.

11.Integrated RS485 communcation, RJ45 network, infrared photocell, loop detector interface, radar module and more secondary development.

Technical Data

Model	WJCB02E	WJCB02H					WJCB02I
Running Speed	0.4S~0.9s	0.9s~5s	5s	5s	5s	5s	3s~5s	5s	5s	5s	5s
Boom Type	Straight	Straight	90° Folding	180° Folding	2 Fence	3 Fence	Straight	90° Floding	180° Folding	2 Fence	3 Fence
Max Boom Length	2m~3.5m	3.5m~6m	5m	4m	4.5m	4m	4.5m~8m	6m	5m	6m	5m
Input Voltage	AC 220V±10%, AC110V
Motor Voltage	DC310V
Enclosure Rating	IP54
Working Temperature	-35°C~+85°C
MTBF	10000000 times
Duty Cycle	100%
Traffic Flow Application	24 hours uninterrupted operation
Max Motor Power	300W
Max Motor Speed	90r/min
Max Torque	480N.m

Commercial Variable Frequency Mechanism

Advanced Features

Powerful Commercial Variable Frequency Controller
Cabinet adopts electroplating and double-layer painting process
Safer: New upgrade of auto reversing function
New Balanced Structure: Soft Touch and Zero Pressure
Subatantially reduce the damage to the vehicle and people

Hit but won't hurt the car
Round foaming arm complete protect
Solve the vehicle be damaged by hitting
Variable frequency barrier works more smoothly than standard barrier models
And its operation life lasts 30% longer than the standard models

Optional Accessories

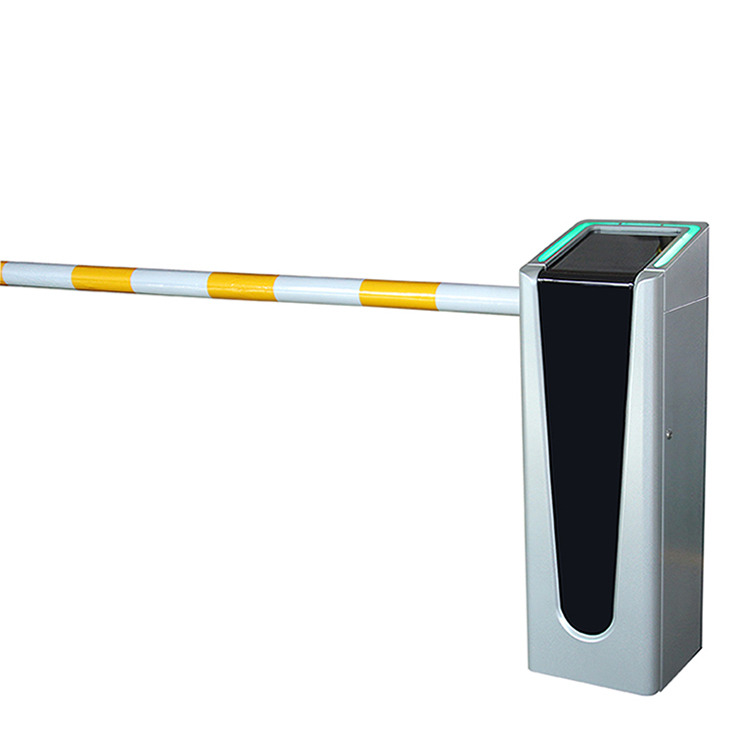

Factory High Durable High Quality Gate Barrier
